Laryngology · Other devices

Laryngeal Separator

Highly flexible silicone device designed to achieve and maintain greater laryngeal separation at the anterior commissure, by the intercordal introduction of a wedge. Part of the Stening® laryngology line.

Product code: SS
Biocompatible silicone laryngeal separator Stening® (SS)
Laryngeal keel or laryngeal separator of silicone Stening®
Application of the laryngeal separator in the treatment of the anterior commissure

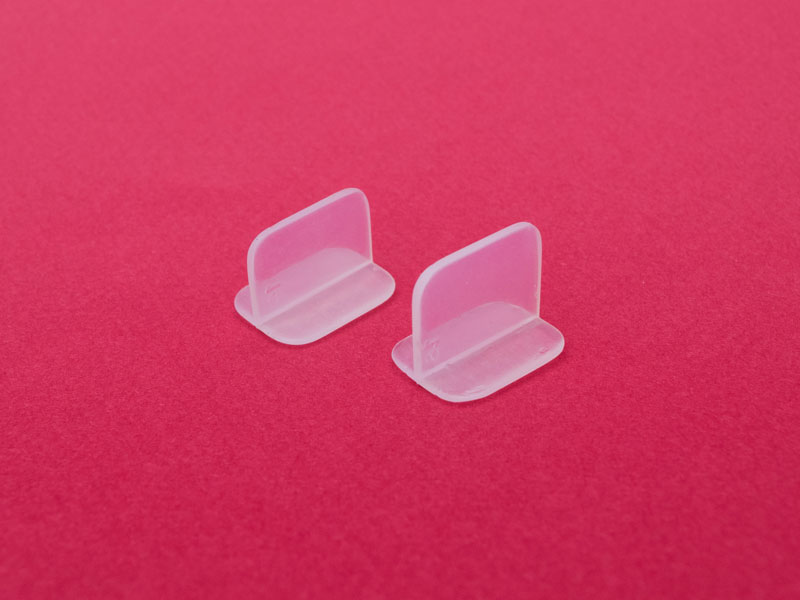

Application of the laryngeal separator in laryngeal and subglottic stenosis
Laryngology · Other devices

Laryngeal Separator

Code SS

The Laryngeal Separator —also called laryngeal keel or anterior commissure separator— is made of highly flexible silicone. Its dimensions and general morphology are intended to achieve and maintain greater laryngeal separation at the anterior commissure, by the intercordal introduction of a wedge of variable length, held in position by the lateral wings of 15 x 20 millimeters. These dimensions remain constant in all models.

The Laryngeal Separator can be used as a complement to hemilaryngectomy to prevent the appearance of stenosis, although it can also widen the subglottic lumen in cases of stenosis of various etiologies. Cordal paralysis does not prevent its use. On occasion, a separator has been placed after removing a laryngeal stent.

Material
Highly flexible silicone
Line
Laryngology / Tracheostomy
Presentations
3 sizes (SS12, SS14, SS16)
Technical specifications

Product information

Review the indications, available dimensions, how to use, care and warnings of the Laryngeal Separator.

Clinical indications

The Laryngeal Separator is indicated to achieve and maintain greater separation at the anterior commissure, preventing or treating stenosis.

  • Laryngeal stenosis
  • Subglottic stenosis
  • Complement to treatment with the Laryngeal Stent
  • After hemilaryngectomy

Available dimensions

The Laryngeal Separator is offered in three sizes (small, medium and large), which vary in the width of the wedge (A). The lateral wings remain constant at 15 x 20 mm. References A, B and C correspond to the dimensional diagram.

Dimensional diagram of the Laryngeal Separator with references A, B and C
CodeABC
SS12 (Small)122020
SS14 (Medium)142020
SS16 (Large)162020

Measurements expressed in millimeters, according to references A, B and C of the diagram. For specific sizing inquiries, contact us at (+54) 11 4553-5070 or (+54) 11 4551-2333.

Implantation technique

The Laryngeal Separator is used exclusively by surgeons and is applied after open laryngectomy with anterior laryngofissure.

Post-implantation care

No additional care is required beyond the postoperative care of the laryngeal surgery.

Warning for use

Important

The device must not be reused, as this could cause cross-contamination.

Also known as: laryngeal keel · anterior commissure keel · intercordal laryngeal wedge · SS
